廣州美國EXCELTA 7149E 鉗子剪鉗價格與型號參數

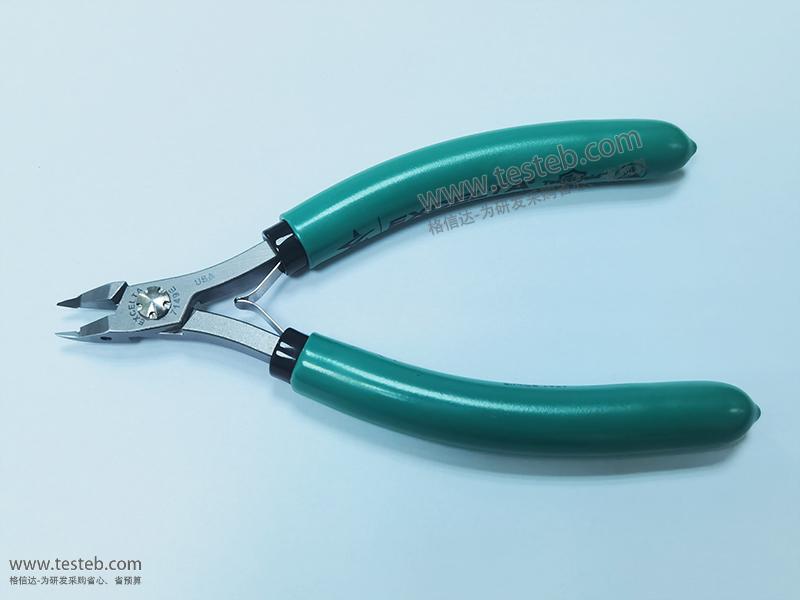

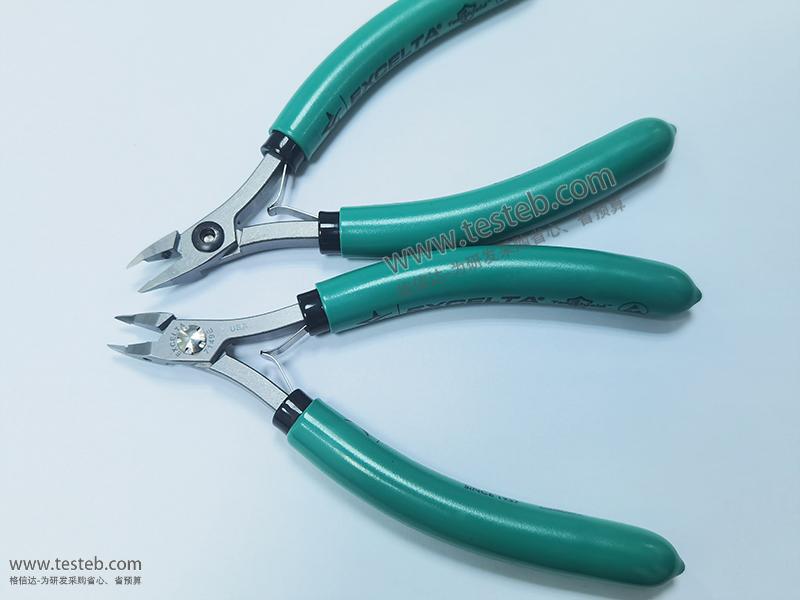

7149E 鉗子剪鉗圖片
美國Excelta 7149E剪鉗尖錐型窄細點剪切頭0.63mm剪徑完全齊平切口
EXCELTA剪鉗采用美國制造的優質鋼，經過一致性的激光切割和數控加工，保證規格精確，切削刀刃感應淬火達到63-65洛氏硬度，獲得耐用性且精密高硬度的鋒利工具，能夠滿足所有切削需要。美國Excelta 7149E尖口剪鉗剪徑0.63mm，超齊平剪切效果，尖錐形減壓小型鉗頭，全長145mm，ESD防靜電雙色泡沫軟手柄，質量等級5五星。規格資料文檔http://www.testeb.com/download/202307/Excelta_7149E_datasheet.pdf。
美國EXCELTA TAPERED/RELIEVED FINE TIPS錐形尖口剪鉗型號規格表
| 型號 | 剪徑范圍（銅鋁軟線） | 切口效果 | 手柄 | 長度類型 |
| 7371E | 0.25mm / 0.010" | Lazer-Flush超齊平 | SL Molded單色小短柄 硬 |
Smallest Fine Tapered Tips 窄尖細錐形頭，全長106mm |
| 7171E剪鉗 | 0.25mm / 0.010" | Lazer-Flush完全齊平剪切 | Long Cushion雙色軟柄 較長 |
Small Tapered Tips細錐形頭斜口鉗 144mm |
| 7271E | 0.25mm / 0.010" | Lazer-Flush | Molded單色手柄 硬 |
Small Tapered Tips細錐形頭 131mm |
| 7170E尖口鉗 | 0.5mm / 0.020" | Lazer-Flush | Long Cushion雙色軟柄 |
Medium Tapered Tips中等錐形尖頭 156mm |
| 7270E | 0.5mm / 0.020" | Lazer-Flush | Molded單色手柄 |
Medium Tapered Tips中等錐形尖頭 119mm |
| 7170EA剪鉗 | 0.5mm / 0.020" | Lazer-Flush | Long Cushion雙色軟柄長 |
Tapered/Relieved Fine Tips 錐形減壓小尖頭，全長156mm |
| 7270EA | 0.5mm / 0.020" | Lazer-Flush | Molded單色手柄 |
Tapered/Relieved Fine Tips 錐形減壓小尖頭，131mm |
| 7149E剪鉗 | 0.63mm / 0.025" | Lazer-Flush完全齊平剪切 | Long Cushion雙色軟柄 |
Tapered/Relieved Fine Tips 143mm |
| 7249E | 0.63mm / 0.025" | Lazer-Flush | Molded單色手柄 |
Tapered/Relieved Fine Tips 125mm |
美國制造MADE IN USA，質量等星5顆星★★★★★ULTRA PRECISION；
7100系列Long Cushion Grip雙色軟柄防靜電10^10Ω
7200系列Molded Grip及7300 Series SL Molded Grip，均為ESD Safe防靜電手柄10^8 ohms/sq.
Excelta剪鉗剪切斷面效果類型介紹
半齊平Semi-Flush：剪切線材斷面會留下0.01“即0.25mm的楔形斷面突出，也就是留有足夠的縫隙保證兩邊刀刃不會碰在一起導致?lián)p壞，使用鉗子使用壽命長，但是會在線材上留下夾傷夾痕。Semi-Flush cutters have a cutting edge with a .010” bevel, which produces more cuts than a maximum flush cutter but leaves a ‘pinch’ on the lead/wire.
齊平Optimum-Flush：斷面僅出現0.005“即0.127mm的楔形突出，堅固使用壽命和剪切效果。Optimum-Flush cutters have a cutting edge with a .005” bevel, which produces a smaller ‘pinch’ on the lead/wire than a semi-flush cutter. The smaller bevel means fewer cuts than a semi-flush cutter.
超齊平Lazer-Flush：斷面完全齊平，沒有任何突出或者斜面，可以在導線/電線上產生純凈、干凈的切割，刀刃非常鋒利，往往刀刃也很薄，切割壽命都會再次縮短。Lazer-Flush cutters have no bevel producing a pure, clean cut with no ‘pinch’ on the lead/wire. The cutting edges are extremely sharp. Cutting life is once again reduced over either of the above.
