深圳瑞士Rubis ID-SSSA 鑷子價格與型號參數
ID-SSSA 鑷子圖片

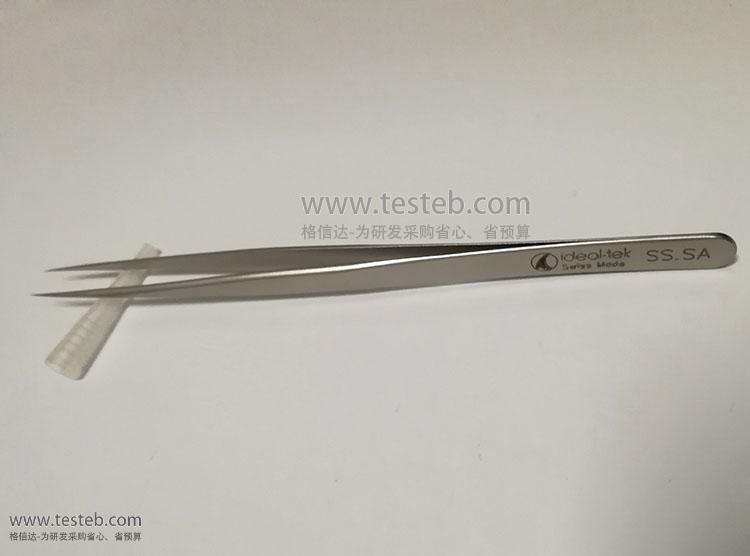

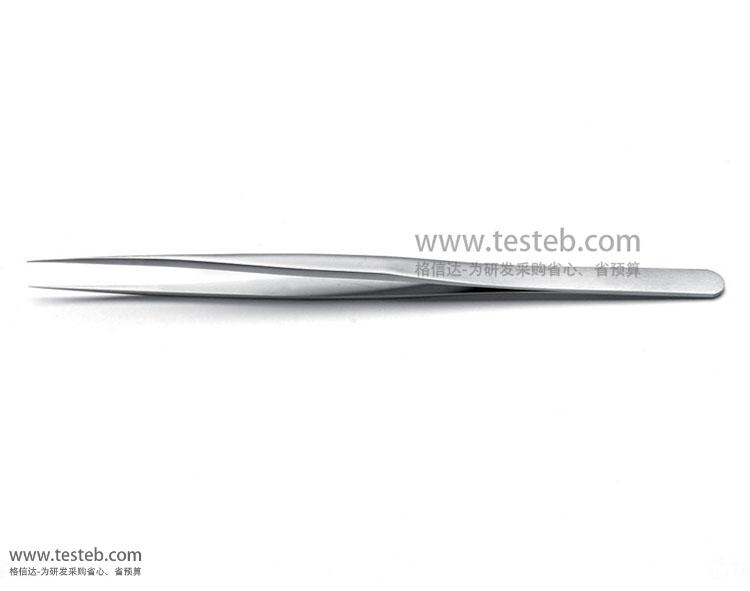

瑞士Ideal-Tek SS.SA鑷子0.12mm窄細尖頭長度140mm
Ideal-tek品牌是瑞士歷史悠久的手動工具制造商，專業生產高質量的手工工具，滿足顧客各種場合的應用及要求，其產品銷往五大洲的40個國家。其生產的鑷子及剪鉗以完美的質量，符合SWISS MADE品質，齊全的規格和新穎的設計，在業界享負盛名。瑞士IDEAL-TEK鑷子鉗子廣泛應用于微電子、鐘表珠寶、顯微外科學、光學、軍工及航空航天等領域。
瑞士Ideal-Tek SS.SA鑷子用碳奧氏體不銹鋼材質精確打造，全長140mm，0.12mmx0.09mm尖頭，窄細尖長設計使其能夠輕松應對狹小受限空間以及具有一定深度或長距離的精密夾取，可在350℃高溫下連續操作使用，具有良好耐腐蝕性能。另有其他材質及涂層的擴展型號用于特殊的操作要求，如擴展型號SS.S高碳鋼、SS.NC高溫合金、SS.TA鈦合金、SS.SA.DC超高硬度（99HRC）鉆石涂層尖頭。
IDEL-TEK Stainless steel type SA不銹鋼材質介紹
low carbon austenitic steel低碳奧氏體鋼（材料編號1.4435，AISI編號316L）
含有16.5至18.5 wt％的鉻，并含有大量的鎳和鉬作為其他合金元素，non-magnetizable (80%)不可磁化，非磁性
good corrosion resistance to most chemicals, salts and acids對大多數化學品，鹽和酸具有良好的耐腐蝕性，通常用于主要要求耐腐蝕性和韌性的場合
Hardness 230HV維氏硬度（≈18HRC洛氏硬度），Continuos use temperature 350℃工作溫度350度
typical applications include tweezers for the electronic industry, watch-makers, jewellers and laboratory and medical applications in moderately aggressive chemical environments典型的應用包括在中等侵蝕性化學環境中的電子行業用、鐘表匠、珠寶商以及實驗室和醫療應用
瑞士ideal-tek High Precision Tweezers高精度鑷子型號規格表
| 型號 | 尖頭尺寸(B寬度x厚度A) | 長度 | 說明及擴展 |
| 0.SA | 0.15mm x 0.10mm | 120mm | flat edges, fine tips 直細尖頭、邊緣平整 |
| 00.SA鑷子粗硬 | 0.90mm x 0.50mm | 120mm | strong, flat edges, thick 堅固厚實頭部、邊緣平整 |
| 000.SA | 0.20mm x 0.15mm | 120mm | strong, flat radiused edges, fine 堅硬精密尖頭、圓角平滑邊緣 |
| 00B.SA | 0.90mm x 0.55mm | 120mm | same as 00 with serrated grips 同00號但帶鋸齒握把 |
| 00D.SA尖頭帶鋸齒 | 0.90mm x 0.45mm | 120mm | same as 00, serrated tips and grips 同00號，握把和尖頭帶鋸齒 |
| 0C9.SA鑷子 | 0.15mm x 0.10mm | 90mm，開口6mm | short, flat edges, fine 短細尖頭、邊緣平坦，擴展型0C9.S高碳鋼 |
| 1.SA | 0.15mm x 0.10mm | 120mm |
strong, straight, fine 堅硬精密尖直頭 1.S馬氏體高碳鋼、1.NC鎳鉻鉬高溫合金、1.TA鈦合金 |
| 2.SA | 0.15mm x 0.05mm | 120mm | flat, sharp fine tips鋒利尖頭、邊緣平整，擴展2.S、2.NC、2.BR |
| 2A.SA扁圓頭鑷子 | 1.90mm x 0.10mm | 120mm |
flat, accurate round tips扁圓頭、邊緣平滑 擴展型號2A.S、2A.NC、2A.TA |
| 2AB.SA彎頭 | 1.90mm x 0.10mm | 120mm | as 2A, curved 與2A相同，彎頭，擴展型號2AB.TA鈦合金材質 |
| 3.SA | 0.15mm x 0.10mm | 120mm，開口8mm |
very sharp, fine 非常鋒利細尖頭 其他材質擴展型號3.S、3.NC、3.TA、 |
| 3C.SA精密鑷子 | 0.20mm x 0.10mm | 110mm，開口8mm |
as 3, short 同3號鑷子，短劍尖頭 3C.S高碳鋼、3C.NC高溫合金、3C.TA鈦合金 |
| 3CB.SA彎頭 | 0.20mm x 0.10mm | 110mm，張開5mm | as 3C, bent tips同3C號，彎頭 |
| 3F.SA彎頭鑷子 | 0.25mm x 0.05mm | 120mm | double bent上下雙彎頭，very fine, pointed, superior finish非常細 |
| 4.SA | 0.10mm x 0.08mm | 110mm | extra fine tips 超細尖頭，擴展型號4.S、4.TA |
| 4A.SA | 0.35mm x 0.15mm | 110mm | as 4, stronger 同4號，更粗硬 |
| 5.SA超細鑷子 | 0.10mm x 0.06mm | 110mm，開口6mm |
extra fine tips, superior finish超細精密尖頭 擴展型號5.S、5.NC、5.TA |
| 5A.SA彎頭鑷子 | 0.13mm x 0.08mm | 115mm |
extra fine tips, superior finish超細精密尖頭，頭部微彎曲5度 擴展型號5A.S、5A.NC |
| 5B.SA | 0.10mm x 0.06mm | 110mm | as 5, bent tips for max visibility 同5號，前端彎頭良好的可視性 |
| 5C.SA | 0.10mm x 0.07mm | 115mm | as 5A, extra fine, double bent tips 同5A，兩次彎頭 |
| 5TTH.SA | 0.14mm x 0.09mm | 110mm | anti capillary, extra fine, with lock-ring for handling electronic microscope grids 用于處理電子顯微鏡網格，超精細 |
| 6.SA | 0.18mm x 0.08mm | 115mm | flat angled, fine 精細彎斜角尖頭 |
| 7.SA彎頭鑷子 | 0.16mm x 0.09mm | 115mm，開口8mm |
very fine, curved 鷹嘴彎尖頭 7.S、7.NC、7.TA |
| 7A.SA | 0.26mm x 0.15mm | 115mm | as 7, strong 同7號，堅固尖頭 |
| 7B.SA | 0.19mm x 0.14mm | 115mm | as 7, serrated tips 同7號，彎頭尖部內含鋸齒 |
| 10G.SA | 0.55mm x 0.45mm | 110mm | fine, serrated tips and grips 精密尖頭內含鋸齒，帶齒手柄 |
| 11.N鎳材質 | 0.20mm x 0.10mm | 120mm | straight, fine tips精密直尖頭 |
|
15A.C碳鋼鑷剪 15AGW.C剪切鑷子 15AP.C |
0.25mm直徑軟線切割 | 120mm |
cutting tweezers for soft copper, gold, silver, magnetic wires 剪切軟銅線引腳，金絲銀線，磁導線 用于受限空間剪切操作，不可剪合金硬線，只能剪低硬度軟材質 |
| 27C.BR銅鑷子 | 0.30mm x 0.10mm | 130mm | strong, sharp, fine tips; precision brass tweezers黃銅材質，尖直頭堅固平整，擴展型號27CL.BR鏡面拋光 |
| 51S.SA彎頭 | 0.15mm x 0.08mm | 115mm | as 5A, bent tips for max visibility，同5A，彎頭避免擋住視線 |
| 775.SA.NE彎頭 | 0.35mm x 0.20mm | 155mm | fine, bent tips ESD epoxy coated handles防靜電環氧涂層 |
| AC.SA | 0.35mm x 0.15mm | 110mm | strong tips, serrated grips 堅硬尖頭，鋸齒握把 |
|
AM.BR、AM.BR.LA AML.BR銅鑷子 |
0.35mm x 0.18mm | 125mm |
precision brass tweezers anti-sparking 精密黃銅，防火花 |
| F.SA方角平頭鑷子 | 1.70mm x 0.08mm | 120mm | as 2A, flat and squared tips 同2A，但頭部為90度方形直角 |
| 65A.SA | 0.15mm x 0.07mm | 140mm | very fine bent tips 精細彎曲長尖頭 |
| SS.SA鑷子 | 0.12mm x 0.09mm | 140mm | extra fine tips超精密窄細尖頭，擴展型號SS.S高碳鋼、SS.NC超高溫合金、SS.TA鈦合金、SS.SA.DC金剛石涂層尖頭 |
| K5HP.SA鑷子組 | 高精度鑷子組套5把裝 | 5支鑷子帶盒 | 00, 2A, 3C, 5, 7號鑷子組合套裝，K5HP.S、K5HP.NC、K5HP.TA |
idealtek鑷子規格資料文http://www.testeb.com/download/202002/ideal-tek_High_Precision_Tweezers.pdf
